Fuel Cell Lucifer Series Membrane Electrodes

Product advantages

● It is insensitive to temperature and humidity, pressure and metering ratio, and can correspond to various working conditions

● Membrane electrode structure design with independent intellectual property rights takes into account hydrophobic mass transfer

● Self-humidification, anti-reverse polar and other functions can be customized according to customer requirements

● Develop different packaging processes for the customer’s plate design to achieve the best performance of the stack

● Strict quality management system to control product design & production

● Complete membrane electrode performance testing and failure analysis detection methods

Technical Features

● Stable and flexible slurry formulation technology, applicable to different material systems

● CCM adopts heat treatment process, which greatly optimizes the microstructure of electrochemical reaction and improves the overall performance

● The MEA frame adopts integrated heat-setting reinforcement technology, which greatly improves the overall life of the fuel cell

● MEA adopts self-humidification technology, which can still work well in low humidity environment

● Single-day production capacity: 3000+

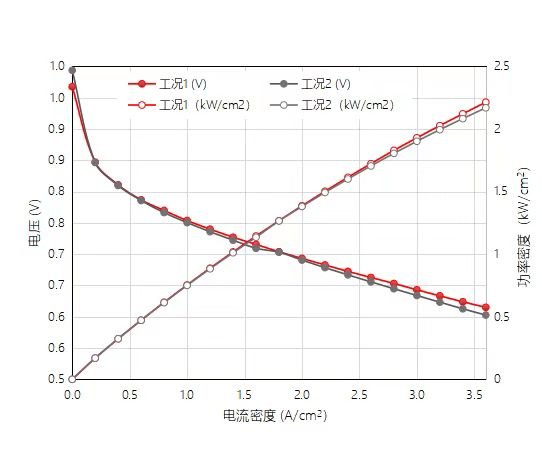

technical parameter

Power density: 1.8W/cm²

Consistency: 1500mA<10mV

Low-temperature cold start: >-35℃

Safety: anti-reverse pole>120min

Fast pull load: ≥150A/S

Slurry stability: >200h

Durability: Design life 25000h, measured 2000h performance attenuation 1%

Lucifer 2.8
