FY06 TYPE

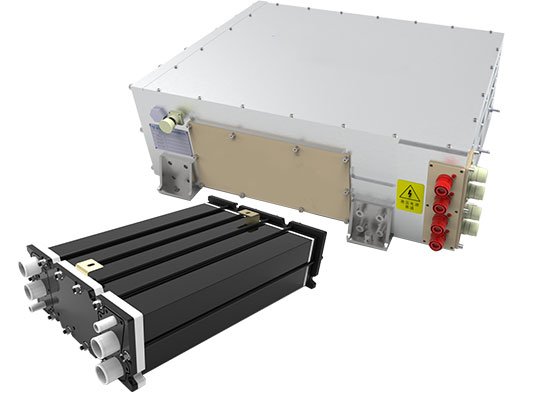

Proton exchange membrane fuel cell stack
● Water-cooled graphite stack, single stack power covers 10kW to 240kW
●The product can design the outer package shell according to customer needs
●Design and development for power station
The product is in the form of single or double stack
Product advantages
long life
The design life is more than 20,000 hours.
High reliability
Long-term and long-mileage verification of many models, stable and reliable performance.
Strictly follow the requirements of IATF16949 for forward development, and have undergone various rigorous tests such as high and low-temperature storage, vibration, cold start, and waterproofing.
High adaptability
Platform design can be combined with a single stack, double stack, or multiple stacks, and flexibly respond to different application requirements
The volume power density in the end plate is 4kW/L, and the stack is small in size, which can be easily adapted to passenger cars, commercial vehicles, and other non-mobile application scenarios
It is insensitive to relatively dry hydrogen and air, low reactor temperature, different gas pressures, or low gas metering ratios can run stably under various conditions, and shows good adaptability to various operating conditions and systems sex

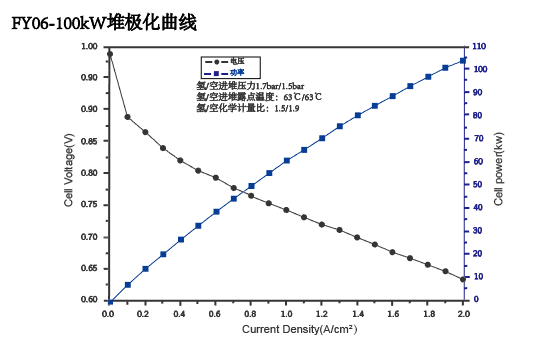

Typical stack type of FY06 series graphite reactor
| Item stack | FY06—80kw (without package) | FY06—100kw (without package) | FY06-100kw (with package) |
| Rated power (kW; @O.64V) | 80 | 100 | 120 |
| Rated voltage (V) | 128 | 160 | 192 |
| Consistency (mV) | Extreme difference (maximum single-chip voltage - minimum single-chip voltage) ≤ 35mV | ||
| Dimensions (length X width X height; mm) | 646X457X195 | 765X457X195 | 800X457X195 |
| Anode/Cathode Gauge Debbie | Anode: 1.4 to 1.7; Cathode 1.8 to 2.2 | ||
| Medium pressure (kPaG) | Anode: 30 to 170, within 20kPa of equal or high thousand cathode; 30 to 150 of cathode | ||
| Coolant temperature (C) | The cooling liquid enters the stack at 30 to 85 °C, and the temperature difference at the outlet is within 12 °C; it can operate stably at lower temperatures. | ||
| Media Humidity (CRH) | Anode: 10 to 100%; Cathode: 10% to 100%; stable operation in drier gas conditions | ||
| Three-chamber flow resistance (kPa) | Anode: <20; Cathode: ≤50; Coolant: <50; | ||
| Vibration resistance/Shock performance | Better than GB/T 33978-2017, GB/T 339288-2018 | ||
| Cold start performance | -30°C without external assistance, 65 seconds | ||
