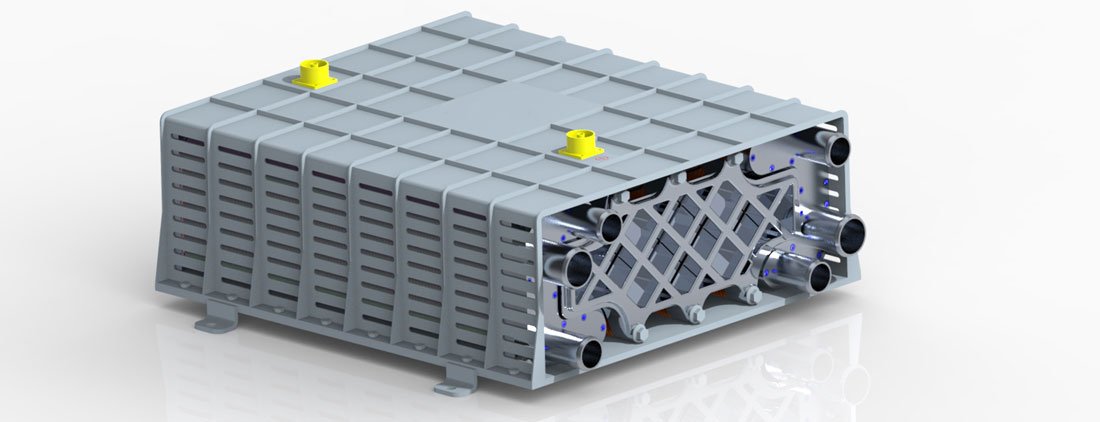

Metal Plate Fuel Cells for Vehicles

Product Features
● The volume specific power reaches 4.5kW/L, and the maximum rated power is 150kW;
● High consistency of single cells, the difference between the average voltage of each cell and the lowest cell voltage is not more than 20mV;
● Wide range of pressure used: low pressure can be used, and the performance can be greatly improved under medium and high pressure;
● A wide range of temperatures and humidity, such as hydrogen can be used without humidification;
● The life of the stack reaches 20,000 hours;
● A complete production line has been established, which can be mass-produced;
● Strict product control and reliable quality assurance;
● Platform development to form a series of products, which can be customized to develop different powers according to needs, which is convenient for application in different scenarios.
Metal Plate Fuel Cells for Vehicles
Rated power monolithic 0.65V (kW) | 60 | 80 | 100 | 120 | 150 |
Inner mass of stack end plate (kg) | 18 | 24 | 30 | 36 | 45 |
Inner volume of the stack end plate (L) | 13.3 | 17.8 | 22.2 | 26.6 | 33.3 |
Life (h) | >20000 | >20000 | >20000 | >20000 | >20000 |
Rated voltage (V) | 117 | 156 | 195 | 234 | 293 |
Rated current (A) | 515 | 515 | 515 | 515 | 515 |
Monolithic Consistency (mV) | 20 | 20 | 20 | 20 | 20 |
Rated efficiency | 52% | 52% | 52% | 52% | 52% |
Hydrogen Anode inlet pressure (bar) | 0.5~1.7 | 0.5~1.7 | 0.5~1.7 | 0.5~1.7 | 0.5~1.7 |
Metering ratio | 1.4~2.0 | 1.4~2.0 | 1.4~2.0 | 1.4~2.0 | 1.4~2.0 |
Air Cathode inlet pressure (bar) | 0.3~1.6 | 0.3~1.6 | 0.3~1.6 | 0.3~1.6 | 0.3~1.6 |
Metering ratio | 1.8~2.5 | 1.8~2.5 | 1.8~2.5 | 1.8~2.5 | 1.8~2.5 |
Hydrogen inlet (outlet) size (outer diameter: mm) | φ40 | φ40 | φ40 | φ40 | φ40 |
Air inlet (outlet) size (outer diameter: mm) | φ48 | φ48 | φ48 | φ48 | φ48 |
Coolant inlet (outlet) size (outer diameter: mm) | φ40 | φ40 | φ40 | φ40 | φ40 |
Overall dimensions of the connector with end plate (mm) | 477*175*350 | 477*175*420 | 477*175*500 | 477*175*570 | 477*175*670 |
